Paver Pattern Guide: Running Bond, Herringbone, Basketweave — Which Holds Up?

Pattern choice affects more than appearance. The angle you lay pavers determines how well they interlock under load and how much cut waste you generate at the edges.

Homeowners pick patterns for looks. Contractors need to think past that — to how the pattern performs under load, how many cuts you will make at the perimeter, and how forgiving it is when your crew is working fast. A bad pattern choice does not show up until a year after install. Here is how to match pattern to application so you are not getting that call.

Running Bond (Stack Bond): Fast and Familiar

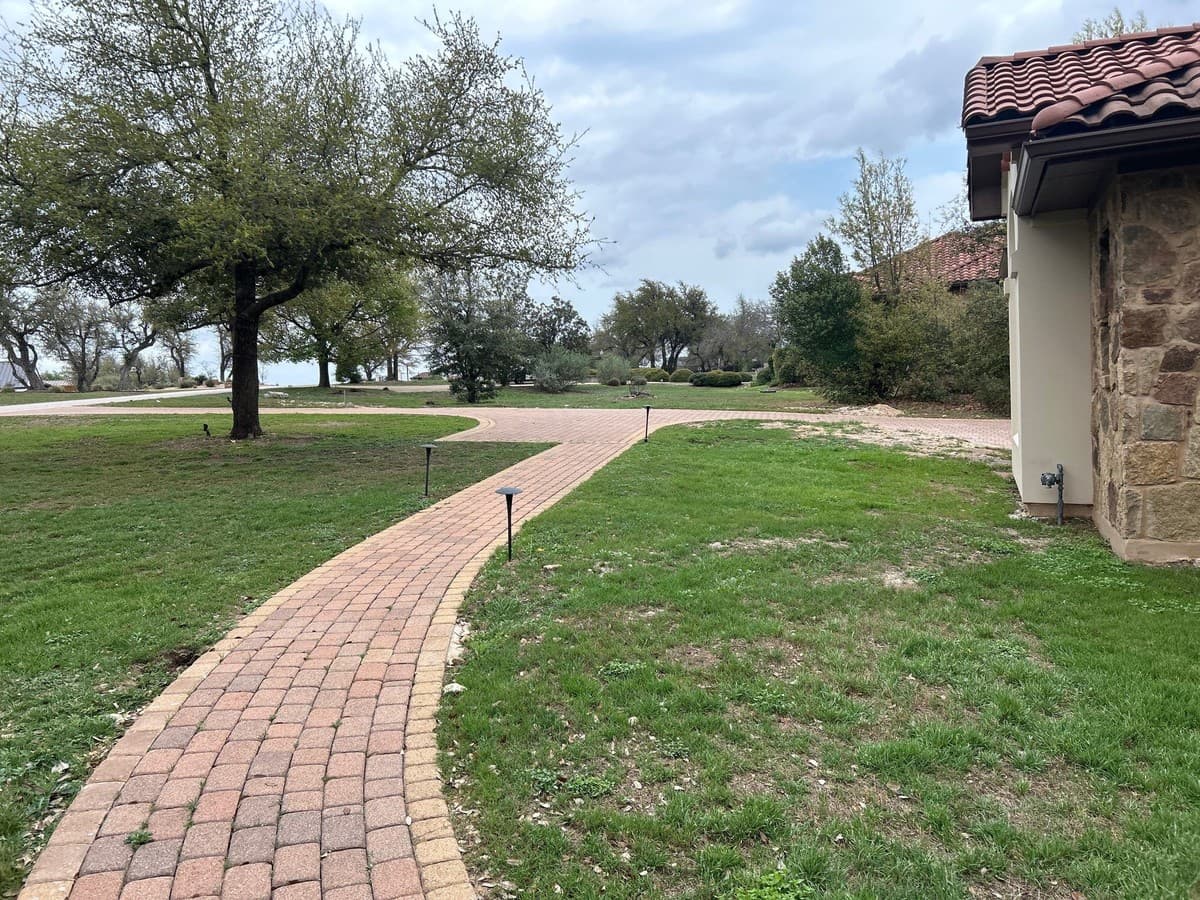

Running bond is the most common pattern — rows offset by half a unit, like standard brick work. It is fast to lay, easy to explain to homeowners, and works with virtually any rectangular paver. Your crew can get into a rhythm quickly.

The structural weakness of running bond is that it creates long continuous joint lines in one direction. Under vehicle loads, those lines become migration paths — pavers can creep apart along the joint rather than being locked in place by neighbors on all sides. For driveways, running bond oriented perpendicular to traffic flow performs better than running bond parallel to it.

For pedestrian-only applications — patios, walkways, pool decks — running bond is completely fine and is probably the fastest pattern to execute well. Cut waste at perimeter edges is minimal because cuts are straight and predictable.

Herringbone: The High-Performance Pattern

Herringbone (45-degree and 90-degree variants) is the strongest performing pattern under load. The interlocking nature of the diagonal layout means that every paver is mechanically locked by its neighbors in multiple directions. There are no continuous joint lines running the length of the surface.

ICPI (Interlocking Concrete Pavement Institute) recommends herringbone at 45 degrees as the best pattern for driveways and areas that will see vehicle traffic. If you are building a driveway with Belgard or Techo-Bloc products, herringbone is the right call from an engineering standpoint.

The tradeoff is cut waste and layout time. At 45 degrees, your perimeter cuts are all diagonal. Waste runs 10–15% higher than running bond for the same area. Budget that extra material into your estimate — it matters on large jobs. A skilled cutter can keep pace with the laying crew, but you need two people working in sync.

Basketweave: Looks Great, Performs Modestly

Basketweave alternates pairs of pavers laid perpendicular to each other — two horizontal, two vertical, repeating. Visually it is distinctive and clients love it. Performance-wise, it falls between running bond and herringbone. The pattern creates some mechanical interlock but also has repeating long joint sections in both axes.

Basketweave is well-suited for pedestrian patios, garden paths, and decorative courtyard areas. Reserve herringbone for vehicle load applications. If a client insists on basketweave for a driveway, use a heavier base (10 inches minimum) and upsized edge restraint to compensate.

Basketweave works best with square pavers or with rectangular pavers that have a 2:1 ratio (4x8, 6x12). The pattern breaks down visually with non-standard sizes. Check that your chosen paver works in the pattern before committing to the design.

"For driveways, I always spec herringbone. The extra cut time is a few hundred dollars. The difference in long-term performance is years."

Fan and Cobble Patterns

Fan patterns (also called sector or fan cobble) are typically used with specifically shaped pavers designed for the pattern — Techo-Bloc's fan cobble line, for example. They look Old World and work well in circular or curved areas. The cuts are complex, installation is slower, and these applications are priced accordingly at the high end of the market.

Standard cobble patterns with tumbled concrete pavers (Belgard's Mega-Cobble, Techo-Bloc's Raffinato) create an old-stone look with minimal cut complexity. Random-set cobble uses multiple sizes in one install, which hides joint patterns and allows very organic layouts. Installation time is higher because each paver placement requires judgment rather than simple repetition.

Mixed Patterns and Borders

High-end residential projects often combine a field pattern with a contrasting border — a running bond field with a soldier course perimeter, or a herringbone field with a double-soldier course. Borders serve both a structural function (edge definition and containment) and a design function.

When pricing mixed pattern projects, account for the pattern transition cuts — where the field meets the border. These cuts require precision layout and more time per square foot than a single-pattern field. Charge accordingly.

Frequently Asked Questions

Which pattern has the most cut waste?

45-degree herringbone has the most waste — typically 10–15% more than running bond for the same area. Budget 15% overage on herringbone jobs. Running bond and basketweave typically need 5–10% overage depending on how many cuts the perimeter requires.

Can I use any paver in any pattern?

Most rectangular pavers work in running bond and herringbone. Basketweave requires a paver with a 2:1 length-to-width ratio. Fan patterns need purpose-made fan-shaped pavers. Always check the manufacturer's pattern recommendations — Belgard and Techo-Bloc both publish pattern guides for each product line.

Does pattern affect drainage?

Not significantly. Drainage through a paver surface depends primarily on joint width and bedding sand type, not pattern. The slope you set in the base drives surface drainage — pattern does not change that. Permeable paver systems use wider joints and open-graded base regardless of pattern choice.

How do I estimate labor time for different patterns?

Running bond: budget roughly 80–100 SF per crew member per hour on a good day. Herringbone at 45 degrees: reduce that by 20–30% to account for additional cuts and layout attention. Mixed patterns with borders: price the field and border separately and add 20% for layout and transition cuts.
