Dim fixtures at the end of a long run mean one thing: the transformer is undersized or the zone is overloaded. Here's how to calculate it right before you install a single fixture.
Low-voltage lighting math is simple, but contractors skip it constantly. They grab a 150W transformer off the shelf, wire everything to it, and then troubleshoot for an hour trying to figure out why half the fixtures look half-bright. The answer is always the same — too much load on a run that's too long, or a transformer that's maxed out. Do the math before you dig. It takes ten minutes.
How Low-Voltage Lighting Systems Work

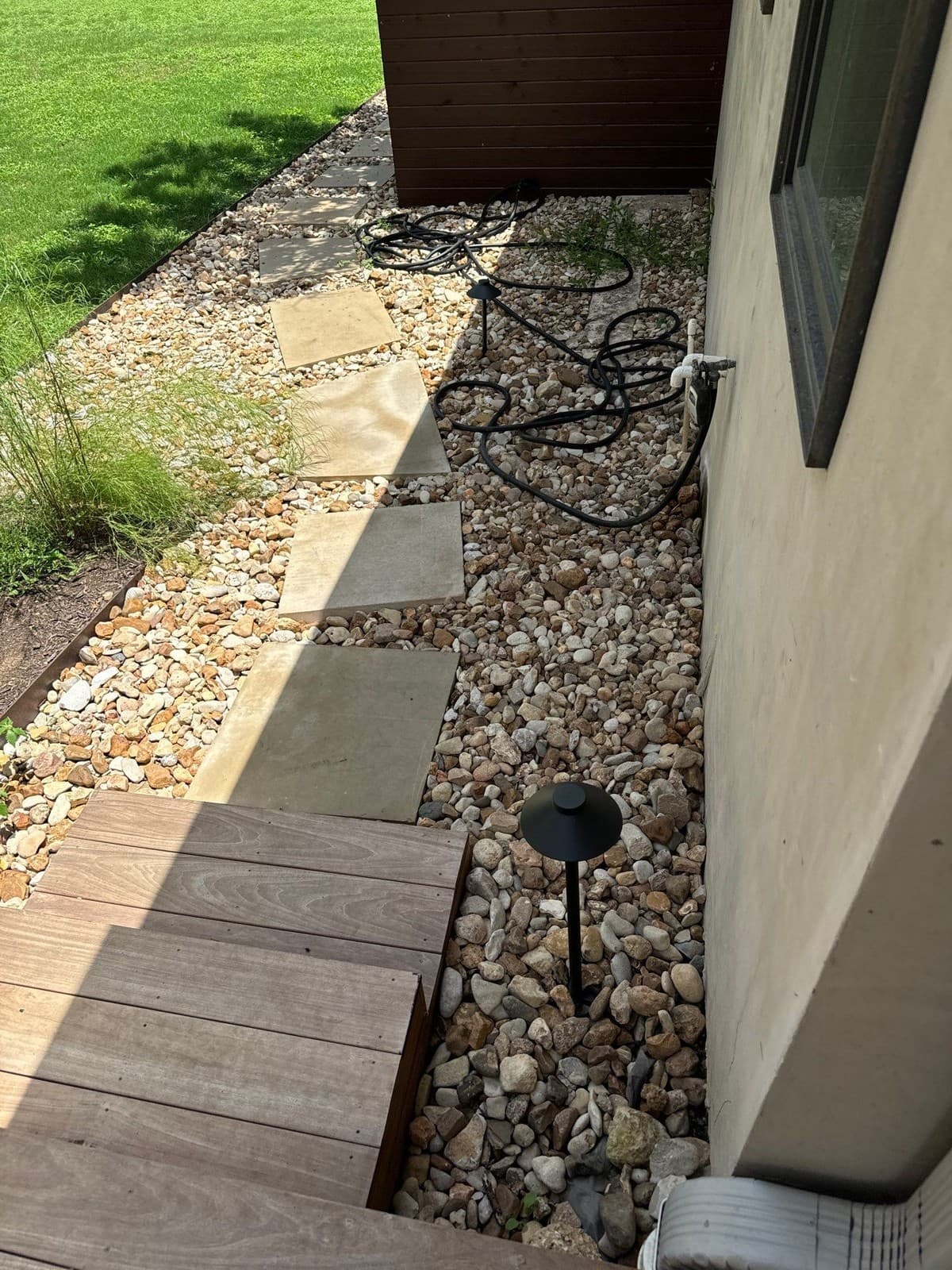

A low-voltage landscape lighting system runs at 12V AC (alternating current), stepped down from the standard 120V household current through a transformer. The transformer plugs into a standard GFCI outlet, converts power to 12V, and feeds multiple wire runs (zones) to the fixtures.
Voltage drop is the physics you're fighting. Every foot of wire has resistance. The longer the run, the more voltage drops before it reaches the last fixture. A fixture rated for 12V receiving only 10.5V will output roughly 30% less light. At 10V it may not fire at all. LED fixtures are more tolerant of drop than halogen was, but they still have limits — typically 10.8V minimum for reliable operation.
Calculating Total Wattage Load
Add up the wattage of every fixture in the system. LED path lights typically draw 3–5W each. LED uplights run 5–15W depending on output. Step lights and deck lights are usually 2–5W. Use the actual spec sheet wattage — not the "equivalent" incandescent rating printed on the box.
Example: 10 path lights at 4W = 40W. 8 uplights at 7W = 56W. 6 deck lights at 3W = 18W. Total = 114W.
Apply the 80% rule: never load a transformer beyond 80% of its rated capacity. This keeps the transformer from overheating and gives you headroom for future additions. For 114W of fixtures, you need a minimum 143W transformer. The nearest standard size is 150W — that's your minimum. For future-proofing a medium-sized residential install, a 200W or 300W multi-tap transformer is a better choice.
Zone Planning: Wire Gauge and Run Length
Wire gauge determines how much load a run can carry at an acceptable voltage drop. The two standard gauges for landscape lighting:
- 12 AWG: Standard for most residential runs. Can carry 100–150W up to 100 feet before voltage drop becomes a problem. Use this as your default.
- 10 AWG: For runs over 100 feet or for zones with higher wattage. Heavier and more expensive, but necessary on large properties.
The rule of thumb for 12 AWG wire: keep total wattage on a single run under 150W and total run length under 100 feet. Beyond that, split into two runs or increase to 10 AWG.
Multi-tap transformers (300W, 600W, 900W) have multiple output taps at different voltage settings — typically 12V, 13V, 14V, and sometimes 15V. Use higher voltage taps (13V or 14V) to compensate for long runs. A run with significant drop that measures 11.5V at the last fixture on the 12V tap will often read 12.5V on the 13V tap — enough to bring those fixtures back to full output.
"Size up the transformer before you order fixtures. It's a $50 decision upfront or a $300 service call after the client calls to say their lights are dim."
Transformer Selection and Features
For residential installs, look for transformers with built-in timers, photocells, and multiple zones. Kichler's 600W Pro Series, VOLT's 300W LED transformer, and FX Luminaire's transformer line all have these features and are contractor-reliable. Avoid no-name or big-box transformers — the timer mechanisms and the step-down quality are both worse.
Key features to spec:
- Multiple zones: Separate zone ports so front yard, backyard, and accent zones can be on different schedules.
- Photocell + timer: Auto-on at dusk, off at a set time. Clients love not managing it manually.
- Multiple voltage taps: 12V, 13V, 14V outputs to compensate for long runs.
- Weatherproof enclosure: Locking cabinet rated for outdoor exposure. Not all transformers sold as "outdoor" are rated for direct rainfall exposure.
12V vs. 120V: When to Use Each
Low-voltage (12V) is the standard for decorative landscape lighting — path lights, uplights, deck lights, accent fixtures. It's safe, doesn't require a licensed electrician to install (in most states), and the fixtures are less expensive.
Line voltage (120V) is for applications needing more power: high-bay flood lights on commercial properties, security lighting over large areas, or specialty fixtures requiring full voltage. Line voltage work requires a licensed electrician in most jurisdictions — know your license scope. Referring this work to an electrician and staying in your lane protects your license and your liability.
Frequently Asked Questions
How do I size a transformer for landscape lighting?
Add up total fixture wattage, then divide by 0.80 (the 80% rule). That result is the minimum transformer wattage you need. Round up to the nearest standard transformer size (150W, 200W, 300W, etc.).
Why are my landscape lighting fixtures dim at the end of the run?
Voltage drop. The wire run is too long, the wattage load is too high for the wire gauge, or both. Solutions: split the zone into two shorter runs, increase to 10 AWG wire, or switch the zone to a higher voltage tap on a multi-tap transformer.
What wire gauge should I use for landscape lighting?
12 AWG for most residential runs up to 100 feet. 10 AWG for runs exceeding 100 feet or zones with higher wattage loads. Never use 14 AWG for landscape lighting — it's undersized for outdoor runs with any meaningful fixture load.
What is the 80% rule for landscape lighting transformers?
Never load a transformer beyond 80% of its rated capacity. This prevents overheating, extends transformer life, and leaves headroom for future fixture additions. A 150W transformer should carry no more than 120W of fixture load.
